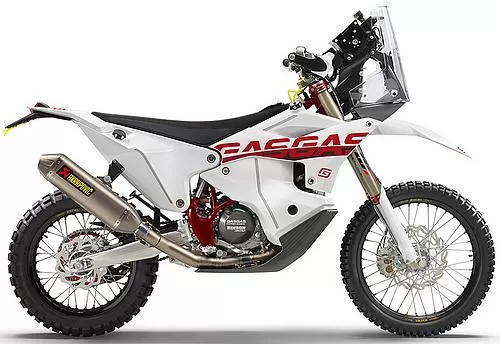

Motorcycle specifications GASGASRX 450 F Replica 2023 One dune can hide another

the GasGas RX 450 F replica, specially designed for international rally racing, isn't here to be an extra! Many of the expertly assembled components of Sam Sunderland's Dakar 2022 Rally-winning bike are used on this limited-edition rally bike to make it a flagship product. Although it's a copy of the KTM 450 Rally, this extreme machine has plenty to whet appetites. Want to take your rallying career to the next level?

Design

thanks to the experience of Sam Sunderland, who took part in the design process, the manufacturer has created a package worthy of a champion. Highly ergonomic design guarantees total freedom of movement to reduce fatigue, while the rider's contact points with the bike are optimized to enable all riders to attack the track with minimum effort. The RX 450 F replica is specifically designed for racing, with an ultra-light carbon-fiber GPS holder mounted behind the front fairing, reducing neck strain at high speeds.

Air filter housing

intelligently designed and perfectly positioned for unlimited performance, the air filter housing delivers a stream of clean air directly into the engine for instant throttle response. Inside, a large Twin Air filter protects the intake from dirt and dust particles, while the ingenious design of the air filter housing protects all electrical components.

Handlebars, grips and throttle

high-strength aluminum handlebars, designed with a curvature that reduces pressure on the hands, are developed for long days on the bike.

Fuel tank

the RX 450 F replica is equipped with three separate fuel tanks, each with a capacity of 34 liters, so you can easily cover long distances with the finish line in sight

Saddle

the RX 450 F replica wouldn't be a race bike worthy of the name without a special rally saddle. Both comfortable and grippy, the saddle is cut out for grueling days of racing.

Frame

the steel trellis frame offers optimum performance. Made from the finest materials available, namely FYI chrome-molybdenum steel, the frame offers calculated flexibility without compromising strength. So this frame has it all: agile on technical terrain and extremely stable at high speed.

rearbuckle

attached to the rear of the frame, the rear loop houses a 16-liter fuel tank.

Forged fork crowns

as well as looking great with their red anodized finish, X-TRIG fork tees deliver incredible performance. Low weight, high performance, multiple handlebar positions for custom configuration: 22 mm offset fork tees enhance the already superior handling of the RX 450 F replica.

WP fork

the new RX 450 F replica features a suspension of choice. At the front, the XACT PRO fork is extremely reliable. The absence of washers, made possible by the unique conical valve, provides continuous, predictable damping throughout the entire stroke.

WP shock absorber

designed to keep the rear wheel in contact with the terrain and keep you moving with confidence, the XACT PRO 7750 WP shock absorber is just as innovative. The integrated TRAX system detects when the rear wheel loses contact with the ground and opens an oil bypass valve to accelerate rebound, pushing the rear tire against the ground for maximum traction.

Swingarm

the ultra-light, robust cast-aluminum swingarm, designed for precise flexibility, is at one with the WP XACT PRO 7750 shock absorber to deliver smooth suspension movements and maximum traction. The rear configuration, linked to a speed-optimized pushrod system, resists crushing for stable handling, especially at high speeds.

Engine

equipped with the high-tech 4-stroke engine of the MC 450F motocrosser, the RX 450 F replica is no slouch. It's light, powerful and features a slight mapping change, to deliver all the power specific to rallying. The engine's interior is just as spectacular. The clutch and gearbox have been strengthened, while the Pankl connecting rod and piston combination is synonymous with performance and durability.

Cylinder head

derived directly from the MC 450F engine, the SOHC cylinder head has undergone transformations at the outlet to further enhance performance. The single overhead camshaft activates four ultra-light titanium valves via extremely strong rocker arms. For maximum durability, the intake rocker arm is finished with DLC (Diamond-like carbon).

Cylinder and piston

at the heart of the RX 450 F replica is the CP crate piston. Integrated into a lightweight aluminum cylinder, it delivers intense power with minimal vibration.

Gearbox

there's no doubt that a 6-speed gearbox offering rally-specific gear ratios is one of the most important components of a high-performance rally bike. Reinforced to meet the demands of racing, the RX 450 F replica provides the same gear ratios that enabled Sam Sunderland to win the 2022 Dakar Rally. A redesigned selector mechanism made from high-grade steel guarantees precise gear changes and durability.

Crankshaft

the extremely strong and durable crankshaft is one of the highlights of the RX 450 F replica. As well as delivering incredible power when needed, its design allows 100-hour intervals between overhauls. The crankshaft incorporates a connecting-rod bearing consisting of two press-fitted bearing shells for maximum reliability.

Engine crankcases

engine crankcases are manufactured using a high-pressure molding process to ensure maximum strength, and are designed to position internal components for improved handling .

Exhaust

the Akrapovic exhaust is designed specifically for rallying and optimizing engine performance. It is mounted lower on the motorcycle to ensure stability at high speeds and handling on slower, technical terrain. Its high-quality titanium construction and reduced length keep overall weight to a minimum.

DDS clutch

long days on the bike call for a solid clutch capable of withstanding the demands of rallying. Housed inside a CNC-machined steel bell, the DDS (Damped Diaphragm Steel) clutch replaces traditional coil springs with a simple steel pressure plate diaphragm. It also incorporates a damping system to improve traction and durability. For the finishing touch, GasGas chose a component straight out of Factory Racing: a Hinson clutch housing. As well as being aesthetically pleasing, it's made from CNC-machined, aircraft-grade aluminum, then covered with a hard black coating to prevent wear on your bellows.

Brakes

if you need to brake in a hurry, don't worry: the Brembo brakes fitted to the RX 450 F replica are the best in their class. With a 300 mm disc at the front and a 240 mm disc at the rear, both deliver superior, controllable stopping power.

Brembo hydraulic clutch

the system is designed to offer self-adjusting free play and require little or no maintenance, not to mention the fact that the same model was used by Sam Sunderland: it's simply the best on the market.

Wheels

the wheelset is capable of covering countless kilometers of rugged desert terrain. Inside, CNC-machined aluminum hubs are connected to high-strength black-anodized EXCEL rims featuring light, strong spokes and steel nipples for added durability.

Tires

since rallying often takes place on public roads, the RX 450 F replica is fitted with Continental TKC 80 tires. Both road-approved and track-ready, this tire combination is ideal for top-level rally racing.

Engine Management System (EMS)

one of the key components that makes the RX 450 F replica so formidable is the Engine Management System (EMS). One of its intelligent features activates a tailor-made engine mapping for each speed, so that maximum power is transferred to the rear wheel in higher gears, while at lower speeds a wider range of power is delivered for total control when the race becomes more technical.

Starter

early morning starts in very low temperatures are very common in rallying, as are minor accidents in sand dunes. Whatever the situation, the electric starter is there to provide a good start in no time.
