Harley-Davidson CVO 1800 FAT BOB FXDFSE 2010

Tell us what you think of this CVO 1800 FAT BOB FXDFSE 2010

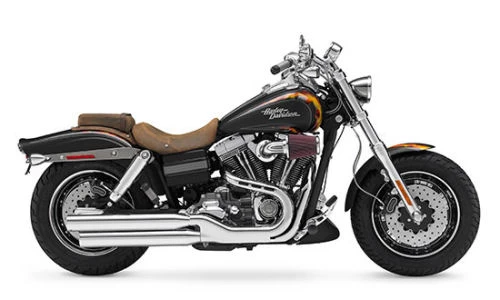

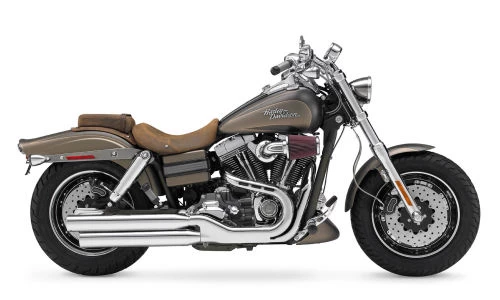

presentation of the CVO 1800 FAT BOB FXDFSE 2010

can't get enough of the 1584 Fat Bob? You want something bigger, more plush, more rebellious... Harley's customization department has thought of you with this CVO edition of the Fat Bob. Pumped up to over 1800 cm3, the huge Twin Cam is of course the 110 clubic inches, as on all Custom Vehicles Operations machines. Some of the custom paintwork is a little wiser but more captivating than on the 2009 series, without detracting from the machine's Bad Boy look. The 2010 CVO Fat Bob benefits from an exclusive new treatment called Midnight Pearl, applied to the headlight housings, clutch cover and timing case, rear fender covers and other components. As on the 2009 model, the intake features a superb, protruding conical air filter. The Fang rims are solid, openwork with bolt-on inserts and finished in black epoxy in the center, contrasting with the chrome rim. The rumble of the Twin Cam 110 is expressed through 2-in-1-in-2 Tommy Gun exhausts, right next to the Bobtail rear fender. The front of the Fat Bob CVO is crowned by a chrome riser tilted to the rear, chrome dragbar-style handlebars, chrome commodos, levers, clutch and master cylinders. Footrests, grips and brake control feature diamond-chased aluminum motifs. A two-piece fuel tank console is finished in chrome and Midnight Pearl with a special CVO medallion. Threatening with its double look, powerful and deep with its huge twin, luxurious like a CVO, the FXDFSE Fat Bob has enough to make many a bad boy tremble.

M.B - Manufacturer's photos

Published on 10/12/20
by Greg

Key facts Harley-Davidson CVO 1800 FAT BOB FXDFSE (2010) : What you need to know before you buy

Highlights

Le twin Screamin'Eagle 110
Luxe
Paints
Catalog items

Weak points

Poids
Recipe

Prices

	Basic version
France	27,000€

Bikers' reviews

of 0 review Read reviews

Model sold in 2010

Performance

Max speed : approximately 170 km/h (105.60 mph)

Specifications Harley-Davidson CVO 1800 FAT BOB FXDFSE 2010

Chassis: Frame : Double steel cradle; Fuel capacity : 18.80 liters (4.97 US gallons); Seat height : 685 mm (26.97 in); Length : 2,310 mm (90.94 in); Wheelbase : 1,615 mm (63.58 in); Dry weight : 315 kg (694 lb); Weight when fully loaded : 326.10 kg (719 lb)

Front axle: Telescopic fork Ø 49 mm, Wheel travel : 110 mm (4.33 in); Braking 2 discs Ø 300 mm (11.81 in), 4-piston caliper; Front tire : 130 / 90 - 16 → Order this type of tire

Transmission: 6 stage gearbox; Secondary belt drive

Rear axle: 2 lateral shock absorbers, Wheel travel : 54 mm (2.13 in); Braking 1 disc Ø 292 mm (11.5 in), 2-piston caliper; Rear tire : 180 / 70 - 16 → Order this type of tire

Motor: two-cylinder 45° V-shaped , 4 strokes; Injection; Cooling system : by air; tumbled; 2 valves per cylinder; 1,803 cc; 96 ch (94.70 hp); 13.50 mkg to 4,000 rpm; Power-to-weight ratio : 3.33 kg/ch; Weight / torque ratio : 23.33 kg/mkg; Compression : 9.15 : 1

Practical information

Take care of your motorcycle! Find all the parts and maintenance products you need to keep your bike in top condition.

motor fluid exhaust Chain kit electricity filtration braking Tires

Motorcyle equipment adapted for all members of the family and security elements.

Models

2010

Used

We don't have used motorcycles for this model, but refine your search and find the model that best suits your needs.

Competitors

Triumph 1600 Thunderbird 2010

Honda VT 1300 CX FURY 2010

Harley-Davidson 1584 FLSTFB Fat Boy Special 2010

Find others Cruiser of 2010

Compare the CVO 1800 FAT BOB FXDFSE to its competitors

Torque

Harley-Davidson CVO 1800 FAT BOB FXDFSE 2010 : 13.5 mkg

Triumph 1600 Thunderbird 2010 : 14.6 mkg

Honda VT 1300 CX FURY 2010 : 10.9 mkg

Harley-Davidson 1584 FLSTFB Fat Boy Special 2010 : 12.5 mkg

Power

Harley-Davidson CVO 1800 FAT BOB FXDFSE 2010 : 96 ch (94.70 hp)

Triumph 1600 Thunderbird 2010 : 86 ch (84.80 hp)

Honda VT 1300 CX FURY 2010 : 56 ch (55.20 hp)

Harley-Davidson 1584 FLSTFB Fat Boy Special 2010 : 71 ch (70 hp)

Power-to-Weight ratio

Harley-Davidson CVO 1800 FAT BOB FXDFSE 2010 : 3.33 kg/ch

Triumph 1600 Thunderbird 2010 : 3.63 kg/ch

Honda VT 1300 CX FURY 2010 : 5.28 kg/ch *

Harley-Davidson 1584 FLSTFB Fat Boy Special 2010 : 4.47 kg/ch

Torque-to-Weight ratio

Harley-Davidson CVO 1800 FAT BOB FXDFSE 2010 : 23.33 kg/mkg

Triumph 1600 Thunderbird 2010 : 21.1 kg/mkg

Honda VT 1300 CX FURY 2010 : 26.72 kg/mkg *

Harley-Davidson 1584 FLSTFB Fat Boy Special 2010 : 25.04 kg/mkg

Speed

Harley-Davidson CVO 1800 FAT BOB FXDFSE 2010 : approximately 170 km/h (105.60 mph)

Triumph 1600 Thunderbird 2010 : approximately 200 km/h (124.30 mph)

Honda VT 1300 CX FURY 2010 : approximately 180 km/h (111.80 mph)

Harley-Davidson 1584 FLSTFB Fat Boy Special 2010 : approximately 170 km/h (105.60 mph)

filter and compareother models

Bikers' reviews Leave a review

FAQ Your frequently asked questions about the CVO 1800 FAT BOB FXDFSE 2010

What is the power of the CVO 1800 FAT BOB FXDFSE 2010?: The CVO 1800 FAT BOB FXDFSE 2010 develops a power of 96 ch (94.70 hp)
What is the torque of the CVO 1800 FAT BOB FXDFSE 2010?: The maximum torque of the CVO 1800 FAT BOB FXDFSE 2010 is 13.50 mkg to 4,000 rpm.
What is the maximum speed of the CVO 1800 FAT BOB FXDFSE 2010?: The CVO 1800 FAT BOB FXDFSE 2010 is capable of reaching a top speed of approximately 170 km/h (105.60 mph) on the track.
What is the weight of the CVO 1800 FAT BOB FXDFSE 2010?: The CVO 1800 FAT BOB FXDFSE 2010 has a a dry weight of 315 kg (694 lb), a weight when fully loaded of 326.10 kg (719 lb).
QWhat is the seat height of the CVO 1800 FAT BOB FXDFSE 2010?: To ensure good accessibility, the CVO 1800 FAT BOB FXDFSE 2010 offers a minimum seat height of 685 mm (26.97 in).
What is the price of the CVO 1800 FAT BOB FXDFSE 2010?: The price of the CVO 1800 FAT BOB FXDFSE 2010 is 27,000€ in France
